PA66 UL94V-0/5.0mm Screw Terminal Connector

    Buy cheap PA66 UL94V-0/5.0mm Screw Terminal Connector from wholesalers

    Buy cheap PA66 UL94V-0/5.0mm Screw Terminal Connector from wholesalers
    • Buy cheap PA66 UL94V-0/5.0mm Screw Terminal Connector from wholesalers
    • Buy cheap PA66 UL94V-0/5.0mm Screw Terminal Connector from wholesalers
    • Buy cheap PA66 UL94V-0/5.0mm Screw Terminal Connector from wholesalers

    PA66 UL94V-0/5.0mm Screw Terminal Connector

    Ask Lasest Price
    Brand Name : ZHONGYI
    Model Number : HQ103-5.0
    Price : $0.08 100~499pcs/$0.07 >500pcs
    Payment Terms : T/T
    Supply Ability : 10000pcs/day
    Delivery Time : 1-3 work day
    • Product Details
    • Company Profile

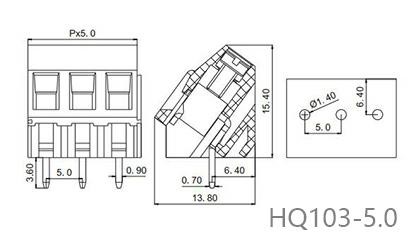

    PA66 UL94V-0/5.0mm Screw Terminal Connector

    PA66 UL94V-0/5.0mm screw type HQ103 phoenix modular terminal block strip connector

    Pitch5.0mm
    Poles

    2p

    Rated voltage300V
    Rated current10A
    Withstanding voltageAC1500/1Min
    Wire range24-12AWG
    Max soldering+250℃ 5Sec
    Torque0.4Nm(3.6Lbin)


    PA66 UL94V-0/5.0mm Screw Terminal ConnectorPA66 UL94V-0/5.0mm Screw Terminal ConnectorPA66 UL94V-0/5.0mm Screw Terminal Connector
