    5.0mm Pitch 2P Brass Cage Screw Terminal Wire Connectors

    Ask Lasest Price
    Brand Name : ZHONGYI
    Model Number : HQ126V-5.0
    Price : $0.06 100~499pcs / $0.05 >500pcs
    Payment Terms : T/T
    Supply Ability : 10000pcs/day
    Delivery Time : 1-3 work day
    • Product Details
    • Company Profile

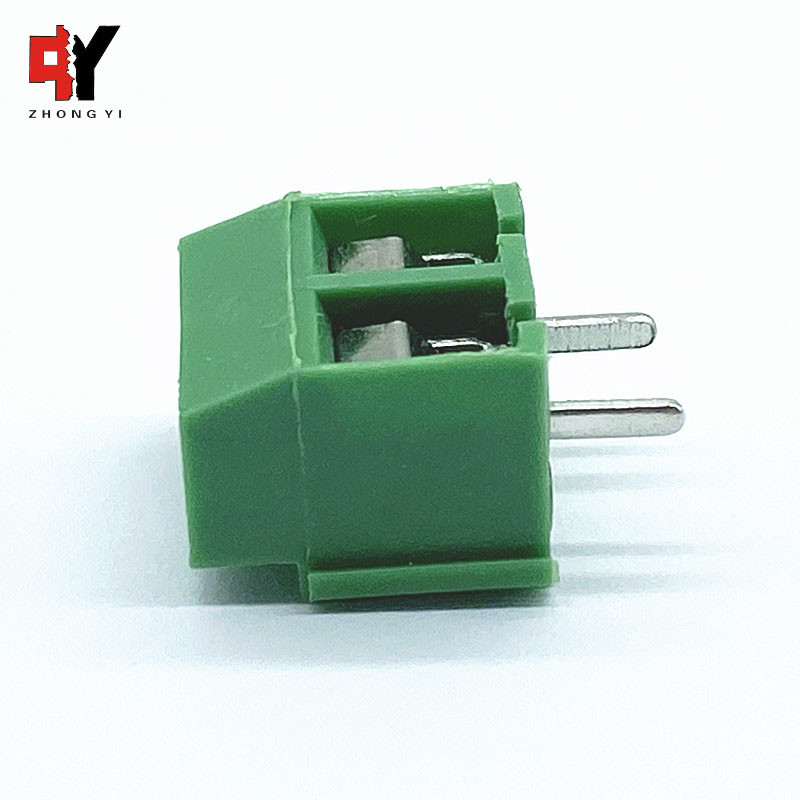

    5.0mm Pitch 2P Brass Cage Screw Terminal Wire Connectors

    Factory direct selling HQ126V-5.0mm Pitch 2P brass cage screw wire terminal block conection

    Picth5.0mm
    Square blockBrass
    ScrewM2.5.Steel.Zinc plated
    Wire guardPhosphor bronze.Ni plated or stainless steel
    Pin headerBrass.Tin plated
    Rated voltage300V
    Rated current10A
    Withstanding voltageAC1500/1Min
    Wire range26-14AWG
    Max soldering+250℃ 5 Sec
    Torque0.4Nm(3.6Lbin)

    Remarks:
    The screw divided into slotted and phillips. If you have specific requirement, pls note or contact us.

    Customized service:

    LOGO, please send us your logo,we can put it on the product.
    Packing, we accept customer's package,if you have specific requirement,please tell us.
    ODM/OEM, We are manufacturer, our engineer can help design according to your requirement.
    Application:
    PCB terminal is widely used in almost electronic equipment, such as relay,automation equipment,car,electricity box,new energy equipment,rail traffic.
