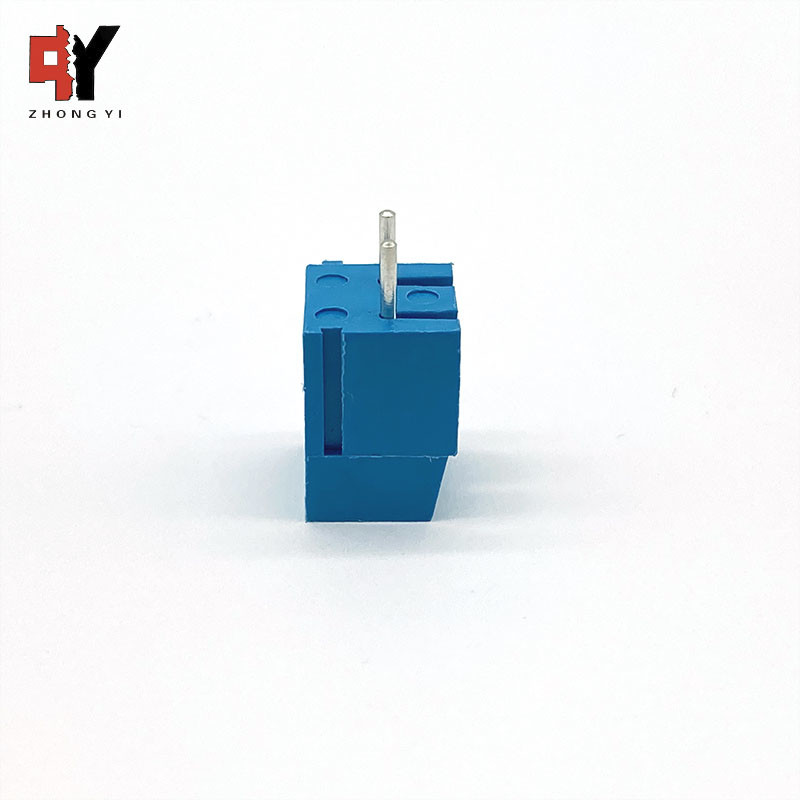

    2 Poles 5.0mm Pitch M3 screw fixed PCB Terminal Connector

    Ask Lasest Price
    Brand Name : zhongyi
    Model Number : HQ300V-5.0
    Price : $0.06 100~499pcs / $0.05 >500pcs
    Supply Ability : 10000pcs/day
    Delivery Time : 1-3 work days
    Payment Terms : T/T
    • Product Details
    • Company Profile

    2 Poles 5.0mm Pitch M3 screw fixed PCB Terminal Connector

    2 Poles HQ300V-5.0mm pitch pcb fast connector brass square block motor screw terminal connector block

    Pitch5.0mm
    Square blockBrass
    ScrewsM3.0.Steel.Zinc plated
    Wire guardPhosphor bronze.Ni plated or stainless steel
    Pin headerBrass.Tin plated
    Rated voltage300V
    Rated current16A
    Max soldering+250℃ 5 Sec
    Torque0.5Nm(4.42Lbin)
    Remarks:
    The screw divided into slotted and phillips. If you have specific requirement, pls note or contact us.
    Customized service:
    LOGO, please send us your logo,we can put it on the product.
    Packing, we accept customer's package,if you have specific requirement,please tell us.
    ODM/OEM, We are manufacturer, our engineer can help design according to your requirement.
    Application:
    PCB terminal is widely used in almost electronic equipment, such as relay, automation equipment,car,electricity box,new energy equipment,rail traffic.
