    PA66 Housing 2.54mm Pitch PCB Screwless Terminal Block

    Ask Lasest Price
    Brand Name : ZHONGYI
    Model Number : HQ141V-2.54
    Price : $0.18 100~499pcs/$0.15 >500pcs
    Payment Terms : T/T
    Supply Ability : 10000pcs/day
    Delivery Time : 1-3 work day
    • Product Details
    • Company Profile

    PA66 Housing 2.54mm Pitch PCB Screwless Terminal Block

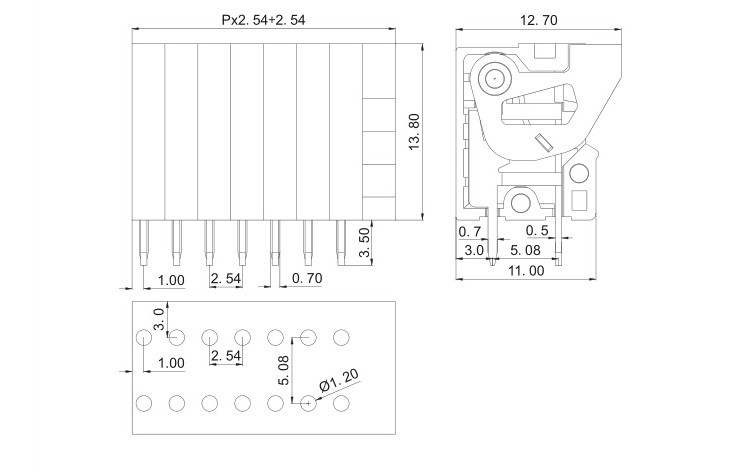

    HQ141V-2.54mm pitch screwless type spring connector PCB terminal block

    Pitch2.54mm
    Wire guardPhosphor bronze.Ni plated
    Pin headerBrass.Tin plated
    HousingPA66.UL94V-0
    Rated voltage150V
    Rated current4A
    Withstanding voltageAC1500/1Min
    Wire range26-16AWG
    Max soldering+250℃ 5 Sec
    Strip length10mm
    Remarks:
    Spring terminal blocks, the connection mode is divided into cage type spring and butterfly type spring connection, can be substituted with screw PCB terminal, increase the flexibility.
    Customized service:
    LOGO, please send us your logo,we can put it on the product.
    Packing, we accept customer's package,if you have specific requirement,please tell us.
    ODM/OEM, We are manufacturer, our engineer can help design according to your requirement.
    Application:
    PCB terminal is widely used in almost electronic equipment, such as relay,automation equipment,car,electricity box,new energy equipment,rail traffic.
