3.81 Mm 300V 8A Plug-In Terminal Block Wire Connectors

    Buy cheap 3.81 Mm 300V 8A Plug-In Terminal Block Wire Connectors from wholesalers

    Buy cheap 3.81 Mm 300V 8A Plug-In Terminal Block Wire Connectors from wholesalers
    • Buy cheap 3.81 Mm 300V 8A Plug-In Terminal Block Wire Connectors from wholesalers

    3.81 Mm 300V 8A Plug-In Terminal Block Wire Connectors

    Ask Lasest Price
    Brand Name : Zhongyi
    Model Number : HQ15EDGRH-3.5/3.81
    Supply Ability : 300pcs one day
    Delivery Time : 3-5 work days
    • Product Details
    • Company Profile

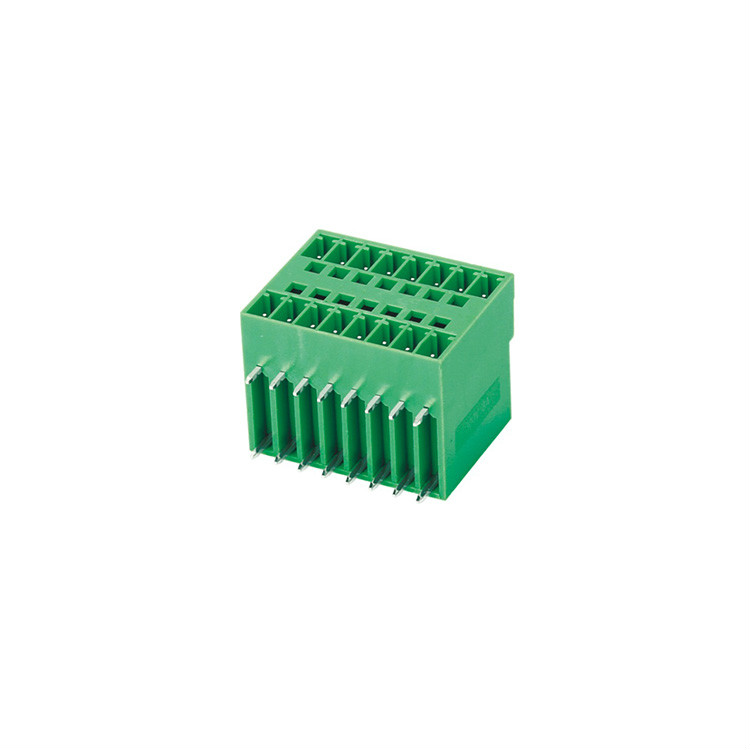

    3.81 Mm 300V 8A Plug-In Terminal Block Wire Connectors

    Name: HQ15EDGRH-3.5/3.81 300V 8A Green Pluggable Terminal Block Connect Circuits


    Parameter

    TypeTerminal block
    ModelHQ15EDGRH - 3.5/3.81
    Spacing3.5/3.81mm
    Pole2*(2-24P)
    Quota300V/8A

    Mechanical

    Temperature Range-30°C~+120°C

    Accessories

    Plastic partsPA66,UL94V-0
    FeetCopper

    Features:

    • Advantage:High contact pressure insure good gas tightness connecting.The struture is finger proof and the screw is anti-drop.Insulation material have fire prevention function and conductor material keep good solderability and electrical conductivity.Connection position:2 to 24
    • Application:European terminal block is one of the most widely used product which can be soldered to the printed circuit board.When screw tightened,the connecting wire will be pressed by screw and fixed on terminal block reliably without mechanical damage

    Quality 3.81 Mm 300V 8A Plug-In Terminal Block Wire Connectors for sale
